| Minnetype | PC5-44800 |
| Formfaktor | DIMM 288-pin |
- On-Die ECC
- Height 1.37"" (34.9 mm), with heatsink

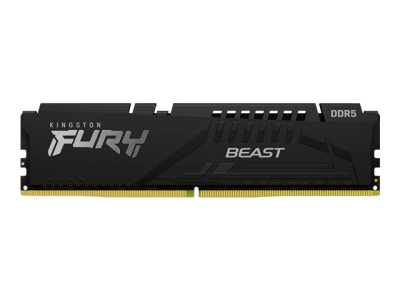

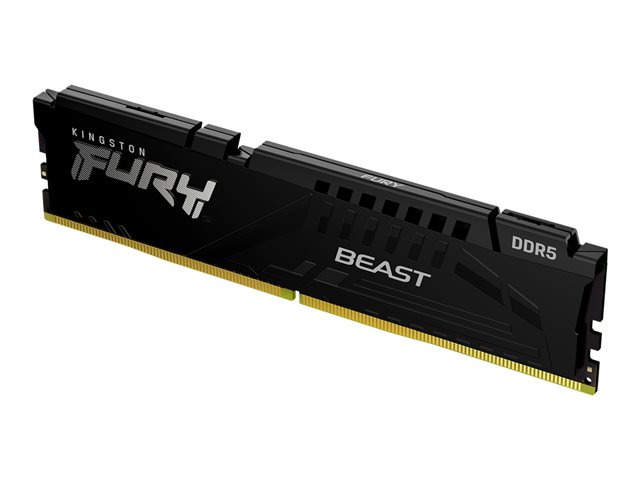

Kingston FURY KF556C40BB-16 is a 2 G x 64-bit (16 GB) DDR5-5600 CL40 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2 G x 8-bit FBGA components per module. The module supports Intel Extreme Memory Profiles (Intel XMP) 3.0. Each module has been tested to run at DDR5-5600 at a low latency timing of 40-40-40 at 1.25 V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1 V. Each 288-pin DIMM uses gold contact fingers.
